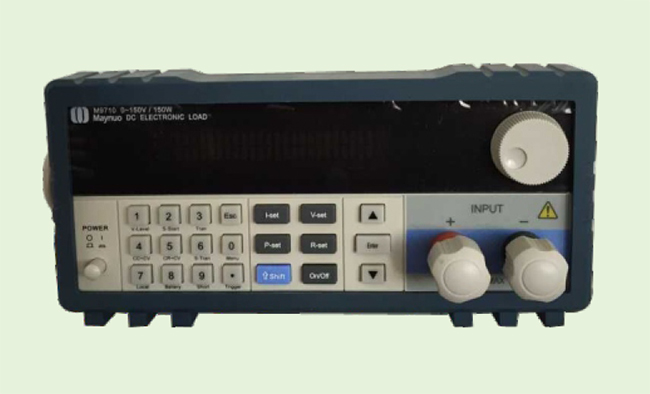

Product Description:

SP97 series products are designed for LED drive electronic load, on the basis of traditional electronic load, increase the unique circuit of LED driver, high speed, high precision design, provide 0.1mV, 0.01mA resolution (basic precision is 0.03%, basic current rising speed 2.5A/us), new appearance, scientific and rigorous production technology, compared with similar production Products, more cost-effective. It is widely used for LED driver production line testing.

Output mode: constant voltage, constant current, constant power and constant resistance.

Technical characteristics:

Constant current mode (CC) range: 0-3A/0-30A

Precision Accuracy:0.03%+0.05%FS/0.03%+0.05%FS

Constant voltage mode (CV) range: 0.1-19.999V/0.1-360V

Precision: 0.03%+0.02%FS/0.03%+0.02%FS

Constant resistance mode (CR) range: 0.03 Omega -10K /0.03 -5K

Precision: 0.1%+0.1%FS/0.1%+0.1%FS

Constant power mode (CW) range: 0-150W

Precision: 0.1%+0.1%FS/0.1%+0.1%FS

Voltage measured value voltage V:0-19.999V/0-150V

Precision: 0.015%+0.03%FS/0.015%+0.03%FS

Current measurement value current I:0-3A/0-30A

Power measurement (when input voltage and current value exceed 10% of full range) power W:100W/300W

Precision Accuracy:0.1%+0.1%FS/0.1%+0.1%FS
